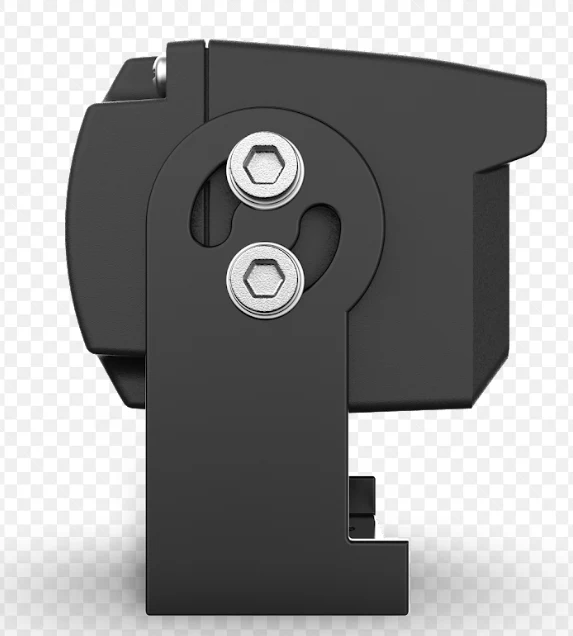

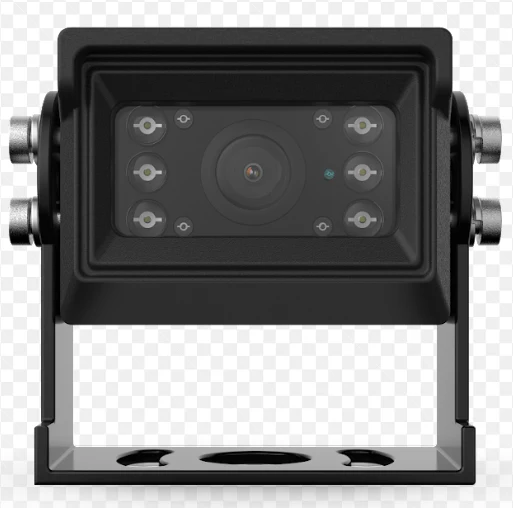

Hema HM-CAM15 Heavy Duty Rear Camera

Designed to work in tandem with the Hema HM-MNT 7” AHD Monitor, the HM-CAM15 features 800 TVL resolution for sharp image details. And with its IR LEDs, the rear camera also enables clear vision at night and in low-light conditions. Housed in stainless steel body, the HM-CAM15 is easy to install with the supplied 10m rear cable and a 6-pin gold-plated connector for strong and reliable connections. The rear camera is also suitable for use with both passenger and commercial vehicles with its 12V/24V power adaptor. An IP69 rating allows the rear camera to work well in all weather conditions.

Key Features

 - Crystal-Clear Display - 800 TVL High Quality Resolution. The high quality resolution enables every image to be captured with fine details.
 - 24 hour image quality - During the day or at night, the high-powered IR LEDs ensure high resolution images are viewed clearly in all lighting conditions round the clock.
 - Reliable connectivity - Reliable 6-Pin connector. When the going gets tough, the durable 6-pin Mini DIN gold-plated connector with a 10m extension cable ensures all connections remain firmly in place for heavy-duty demands.
-Night vision - clear vision at night and in low-light conditions
-Reliable viewing - IP69 rating for excellent viewing in all weather conditions


Key Specifications

Signal System:	NTSC
Resolution:	800 TVL High Quality
Minimum Illumination:	0.0 Lux
Diagonal Angle:	150°
Waterproof Rating:	IP69K
Nominal Voltage:	12V/24V
Working Temperature:	-30°C to 85°C

Package includes:

• HM-CAM15 AHD Camera
• 12V/24V Adaptor
• RCA Adaptor
• 10m Rear Extension Cable
• User Manual

The Hema HM-CAM15 is only compatible for use with the
Hema HM-MNT 7" AHD Monitor.

Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Compatible Hema Monitor is sold separately.
